If you own an older home in Sacramento, there's a good chance your house contains multiwire branch circuits (MWBCs), a once-common wiring method that can present serious safety hazards if it isn't properly installed or maintained. During our electrical safety inspections, we frequently find MWBCs that don't meet current code requirements, putting homes and families at risk.
What Is a Multiwire Branch Circuit?
A multiwire branch circuit is a wiring configuration where two hot wires (typically black and red) share a single neutral wire, all running through one cable such as 12/3. This method was popular for decades because it saved on materials and installation time while powering multiple circuits.
When properly installed, the two hot conductors connect to opposite phases in your panel, so the shared neutral carries only the difference in current between the two circuits rather than the sum. For example, if one circuit draws 10 amps and the other draws 15 amps, the neutral carries only 5 amps.
The Major Code Change: What Was Legal Before 2008
Here's what many homeowners don't know: before 2008, it was perfectly legal to install multiwire branch circuits on two separate single-pole breakers with no connection between them.

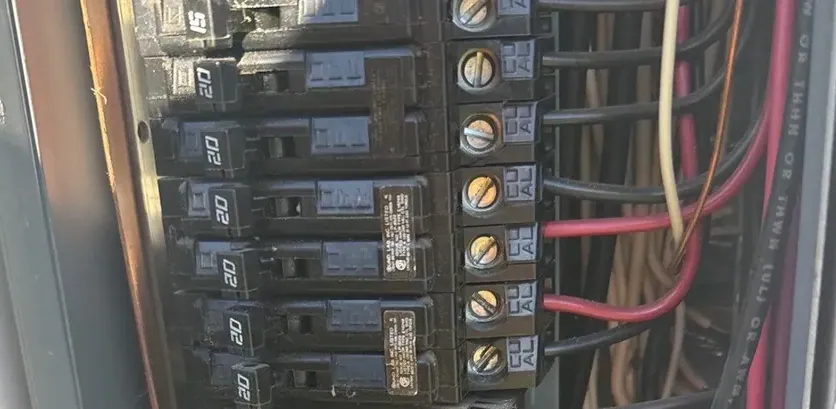

Prior to the 2008 National Electrical Code (NEC) update, electricians routinely installed 12/3 cable with the black and red hot wires on separate single-pole breakers positioned on opposite phases, but without handle ties or a common trip mechanism. As long as the two circuits were on opposite phases to prevent neutral overload, this met code at the time.
That changed in 2008. The NEC was revised to require all multiwire branch circuits to have simultaneous disconnect capability. Every MWBC now requires either a 2-pole common trip breaker or two single-pole breakers with identified handle ties.
Why This Safety Requirement Matters
The 2008 code change addressed real hazards.
Shock hazard during maintenance. The primary danger occurs when someone turns off one breaker to work on what they believe is a de-energized circuit. Without handle ties or a common trip breaker, the shared neutral can still be energized from the other circuit, creating a serious shock hazard.
Neutral overload and fire risk. When both hot conductors are accidentally placed on the same phase instead of opposite phases, the neutral becomes dangerously overloaded. Instead of carrying the difference between the two circuits, it must carry the sum of both loads, potentially double the amperage it was designed to handle. This overheating can degrade insulation and create conditions for arc-fault fires hidden behind your walls.
Disconnected neutral dangers. If the shared neutral becomes loose or disconnected, voltage imbalances occur that can damage or destroy appliances and electronics. One circuit might receive dangerously high voltage while the other receives too little, creating fire hazards and equipment damage.
Common MWBC Problems We Find
During safety inspections of Sacramento-area homes, our licensed electricians regularly discover:
- Missing handle ties or common trip breakers. Older installations that met code when installed but now require upgrading.
- Hot wires on the same phase. A dangerous wiring error that doubles the current load on the neutral.
- Improper neutral connections. Neutrals terminated directly to outlets instead of pigtailed, which can interrupt neutral continuity when a device is removed.
- Lack of circuit identification. Conductors not properly grouped or identified, making it difficult to know which circuits share neutrals.
Why Inspections Matter for Older Homes
If your Sacramento home was built before 2008, or before the 1990s, there's a strong possibility it contains multiwire branch circuits that don't meet current standards. Homes built in the 1970s and 1980s commonly used 12/3 wiring with shared neutrals to reduce installation costs.
A full inspection by a licensed electrician can identify these hazards before they cause fires, equipment damage, or injuries. During an inspection, we evaluate your panel, examine wiring configurations, test for proper phasing, verify handle ties and common trip breakers, and confirm all circuits comply with current code.
The Benefits of Upgrading Non-Compliant MWBCs
Bringing older multiwire branch circuits up to current standards provides several benefits:
- Safer home. Simultaneous disconnection of all hot conductors prevents shock hazards during maintenance.
- Fire prevention. Proper installation eliminates neutral overload conditions and reduces arc-fault fire risks.
- Equipment protection. Balanced circuits prevent voltage imbalances that damage appliances and electronics.
- Insurance compliance. Many insurers require homes to meet current electrical safety standards, and upgrades can potentially lower premiums.
- Less to worry about. Knowing your wiring is safe.
When to Schedule an Inspection
We recommend scheduling a professional electrical inspection if:
- Your home was built before 2008 and you haven't had an inspection since
- You are experiencing frequently tripping breakers or flickering lights
- You are buying or selling a home
- Your home is 25 to 40 years old or older
- You have recently completed major renovations or added large appliances
- You are planning to add EV charging or solar panels
Trust the Sacramento Electrical Safety Experts
At Peach Electric, we find and fix electrical safety issues in older Sacramento-area homes. Our electricians work with multiwire branch circuits and understand both historical code requirements and current safety standards. We can install proper handle ties, upgrade to common trip breakers, correct improper phasing, and confirm all multiwire branch circuits meet code for safe operation.
Have questions about your home's wiring? Reach out to Peach Electric for a free, upfront estimate and to schedule an electrical safety inspection.
